Как просужить погреб в гараже от конденсата: виды вентиляций, полезные советы

Чтобы максимально использовать пространство, многие владельцы гаража обустраивают там погреб для хранения продуктов питания. Но если не организовать правильную систему вентилирования, запасы будут быстро портиться от повышенной влажности и отсутствия свежего воздуха. Как должна быть устроена вытяжка для погреба в гараже и как сделать ее собственными руками, разберемся в статье.

Для чего нужна вытяжка в погребе в гараже

Для начала нужно понимать, зачем нужна вентиляция в погребе. Для этого есть целый ряд причин:

1. Если не будет обмена воздуха, в помещении быстро начинает появляться конденсат, который увеличивает влажность воздуха. Это приведет к порче продуктов, появлению грибка и плесени.
2. В холодное время года температура воздуха в подземном помещении будет на порядок выше, чем в гараже. При отсутствии вытяжки теплый и влажный воздух будет подниматься из погреба наружу и провоцировать коррозию железа, что очень опасно для автомобилей.
3. Если не сделать вытяжку, то продукты со временем станут токсичными и непригодными для употребления. Вредные испарения от машины, запахи разных химических жидкостей, резины и прочего будут пропитывать запасы.

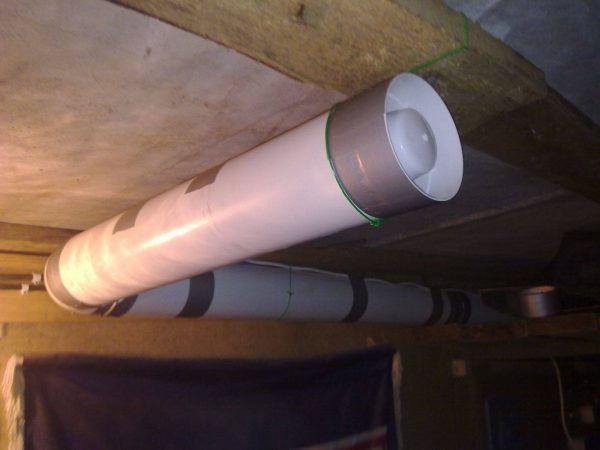

Чтобы не было конденсата – нужна вытежка

Именно потому система вентиляции погреба гараже должна предусматривать устранение воздуха из ямы и поступление свежего внутрь.

Виды вентиляции

Есть несколько видов вентиляции, которая может быть установлена в подвале:

1. Естественная вентиляция в погребе гаража. Такой вариант — самый доступный и простой способ проветривания помещения. Но летом такое устройство не работает, а зимой нужно постоянно проверять вентиляционные каналы и контролировать их состояние.
2. Комбинированная вытяжка обеспечит хороший воздухообмен. Она отличается от естественной только тем, что возле одного из воздуховодов есть вентилятор, который оказывает дополнительное сопротивление потоку воздуха. Конечно, он не должен быть включенным постоянно. Используйте вентилятор только в тех случаях, когда нужно проветрить помещение. Преимущество комбинированной вытяжки в том, что она одинаково эффективна в любое время года.
3. Принудительная вентиляция производится за счет постоянной работы вентилятора. Такой способ более затратный, поскольку предусматривает постоянное потребление энергии. К тому же монтировать систему достаточно тяжело, и не каждый хозяин сможет сделать это самостоятельно.

Какой из вариантов выбрать, зависит от личных предпочтений, размера погреба и объема продуктов, которые в нем находятся.

В данном видео вы узнаете, как сделать сухой подвал:

Устройство естественной вентиляции

Естественная вентиляция относится к самым простым способам осушения подвала в гараже. Чаще всего ее используют, если помещение не очень большое. К тому же ее просто сделать собственными руками.

Но такое устройство вентиляции в погребе гаража требует постоянного контроля, ведь трубы легко забиваются мусором, снегом или опавшими листьями. Во время установки системы важно знать несколько аспектов:

1. Приточная и вытяжная трубы должны располагаться в противоположных углах помещения.
2. Приточная труба не должна быть выше, чем 30-50 см от пола, а вытяжная – 150-200 см.
3. Если вытяжная труба устанавливается с наружной части, ее следует утеплить.
4. Входное отверстие закройте мелкой сеткой. Это убережет от мелких грызунов и насекомых, которые могут попасть в погреб.
5. Накройте вытяжку козырьком, а лучше диффузором, который будет увеличивать тягу.
6. Чтобы понять, какой диаметр приточной трубы понадобится, нужно умножить площадь гаража на 1,5. При этом первое значение берется в квадратных метрах, а результат – в сантиметрах.
7. Вытяжная труба не должна быть большого размера. Специалисты считают, что достаточно будет диаметра, равного десятой части от размера приточной.

Чтобы разобраться было проще, составьте схему до начала работы в гараже. Учитывайте, что труба должна быть максимально ровной. Каждый ее изгиб значительно снижает эффективность всей системы вентилирования.

Организация принудительной вентиляции

Лучший способ, как просушить погреб в гараже, – установить принудительную вентиляцию. В таком случае воздух будет нагнетаться внутрь помещения, проходить фильтрацию, а также подогреваться или охлаждаться в зависимости от температуры снаружи.

Такая система лучше всего поможет высушить конденсат или влагу после затопления погреба. Организуют принудительную вентиляцию с помощью встроенных в трубу вентиляторов. В остальном схема вентиляции погреба в гараже практически не отличается от предыдущего варианта.

Но этот способ имеет и свои недостатки:

1. Нужно провести проводку в трубы, а это – дополнительные затраты и работа.
2. Система содержит много деталей, которые периодически будут выходить из строя и требовать замены.
3. Будет постоянный расход электроэнергии.

Вентиляция гаража с погребом с ямой, выполненная таким способом, будет быстрой и качественной.

Данная вентиляция имеет ряд недостатков

Перед тем как приступать к работе, нужно обдумать все нюансы. Сначала определитесь с местом, где будет расположен вентилятор. Его нельзя ставить на концах трубы, поскольку прибор выйдет из строя при попадании влаги. К тому же вентилятор довольно шумный, что может доставлять дополнительный дискомфорт.

Получается, что можно сделать монтаж в трубе, в месте, где происходит забор воздуха, или выбрать канальный вентилятор. На начальном этапе установка ничем не отличается от естественной: устанавливаются две вентиляционные трубы в противоположных углах на разной высоте.

Далее в трубу встраивается вентилятор. В это же время укладывается кабель, чтобы запитать устройство. Остается только монтировать выключатель, и система готова к использованию.

Часть трубы, которая находится на поверхности, нужно закрыть мелкой сеткой, и оборудовать козырек.

Устройство комбинированной вентиляции

Еще один вариант, как избавиться от влаги в погребе, – установить комбинированную вентиляцию. Она поможет эффективно просушить помещение подвала и избавить его от застоявшегося воздуха.

Чтобы сделать комбинированную вентиляцию, достаточно установить обычную лампочку в вытяжной трубе. Именно она будет подогревать воздух и дополнительно усиливать тягу.

Раньше для этого способа использовали свечку. Но такой вариант ненадежен и весьма опасен.

Устройство естественного воздухообмена

Естественная вытяжка состоит из ряда составляющих:

1. Входная труба, через которую чистый и свежий воздух будет попадать внутрь погреба. Чаще всего она имеет диаметр от 10 до 25 см.
2. Выходная труба, через которую воздух будет покидать помещение. Ее диаметр будет немного меньше.
3. Резервуар, в который будет собираться конденсат.
4. Мелкая сетка, которой закроется наружная часть трубы.
5. Конусный козырек.

Перед тем как сделать вытяжку в погребе гаража, проведите теплоизоляционные и гидроизоляционные работы. Лучше всего это делать еще на этапе строительства подвала.

Вентиляция гаражного погреба своими руками

Вентиляцию в погребе в гараже можно сделать своими руками. Монтаж условно делят на несколько этапов:

1. Работа с вытяжным воздуховодом. Система вентиляции должна работать правильно, поэтому нижний конец трубы нужно зафиксировать в 1.5-2 метрах от пола. Внешняя же часть выводится наружу, за пределы подпола. При этом верхняя точка будет выше уровня грунта на 0,5 м.
   Есть два способа для установки вытяжной трубы. Если использовать сквозной вариант, то трубу нужно будет провести насквозь, через гаражный пол, в само помещение, и вывести через потолок и кровлю основного сооружения.
2. Есть еще один вариант, который называется «сквозь стену». Если использовать его, нижняя часть вентиляционной трубы будет расположена вертикально и выходить не через верх, а через боковую стенку основного здания, и подниматься вверх параллельно основному строению.


   В таком случае у основной трубы будет залом, что значительно усложняет не только забор воздуха, но и его очистку.

3. Установка приточного воздуховода. Для этого следует ввести трубу в противоположный угол от вытяжки. Далее укрепите ее на расстоянии около 50 см от пола погреба. Противоположный конец трубы также выводится наружу. Он должен находиться на высоте не более 20 см от уровня земли. Так он лучше всего будет забирать воздух.
4. Проверьте воздушную тягу. Сделать это просто с помощь обычной зажженной спички.
5. На конце каждой из труб закрепите мелкоячеистую сетку. Именно она убережет от засорения труб и попадания в них насекомых, мелких грызунов и птиц.

Чтобы продлить срок службы трубы, соорудите небольшие козырьки над каждым из выходов. Такие простые манипуляции помогут сберечь основание от жаркого солнца, дождей и снега.

Не забываем следовать инструкции создания вентиляции

Даже когда работает правильная вытяжка, образуются капельки конденсата. Для них устанавливается специальная емкость, в качестве которой может служить небольшая миска или ведерко.

Важно не только знать, как правильно сделать вытяжку в погребе, но и интересоваться новыми разработками. К примеру, новые заслонки. С их помощью можно легко контролировать воздухообмен в подвале, что особенно важно в зимнее время. Как только температура на улице опускается ниже нужного уровня, следует просто закрыть их, и морозный воздух не сможет проникнуть в помещение, испортив продукты, которые в нем хранятся.

Механизированный тип вентиляции

Самым новым и действенным способом, с помощью которого просушивают погреб в гараже, остается механизированный. В таком случае за циркуляцию воздуха полностью отвечает моноблок, который и провоцирует движение.

Программное обеспечение, которое в нем установлено, управляется с помощью модульной системы. Именно потому этот агрегат называют самым надежным на данный момент.

Единственный недостаток системы в высокой стоимости. Не каждый хозяин готов выложить несколько тысяч для обеспечения нормальной циркуляции воздуха в подсобном помещении.

Если планируется загружать подвал продуктами максимально и часто пользоваться его помещением, то лучше сделать все капитально, чтобы потом не жалеть о пропавших запасах.

В заключение

В статье мы рассмотрели основные виды вытяжек, которые можно установить в погребе, находящемся в гараже. Какому из перечисленных вариантов отдать предпочтение – дело каждого. Важно учитывать размер помещения, насколько часто оно будет использоваться.

С помощью описанных выше характеристик и рекомендаций каждый сможет оборудовать собственный подвал отличной вентиляцией. К тому же сделать это можно собственными руками, не прибегая к услугам специалистов.
