Как заготавливать раствор для кладки кирпича? Обзор и Пропорции +Видео

Строения из кирпича очень долговечные и надежные. Они могут стоять годами. Да что годами! Веками. Но кирпич не считается дешёвым материалом.

Ведь для создания небольшого строения понадобится довольно много этого строительного материала. И всё-таки, кирпичные дома  никогда не выйдут из моды и долгое время не потеряют внешний вид.

Приготовление раствора для кладки кирпича — тема этой статьи. Поговорим далее.

[contents]

Любой кирпич, будь он силикатный или керамический, применяют для построения домов, внутренних стен в доме, ограждений, выкладывают печи, камины, мангалы. В результате выходят эстетичные стены и другие изделия из кирпича, устойчивые к разнообразным воздействиям.

Для крепости и надёжности будущего строения необходимо сделать добротный раствор, при помощи него скрепляются ряды и отдельные кирпичи. Есть несколько разновидностей растворов с разными компонентами и об этом мы поговорим в этой статье дальше.

Приготовление раствора для кладки кирпича

Сухие вещества и воду смешивают и хорошо перемешивают.

Известковые растворы

Считается, что самым лучшим раствором считается цементный раствор.

Для  кирпича подходит более пластичный состав, что необходимо для возведения различных ограждений и внутренних стен. Поэтому можно применять теплый раствор из извести, который приготавливают из негашёной измельчённой извести и песка.

Сухие составляющие тщательно смешивают, а потом только добавляют воду. После добавления воды, всё хорошо смешивают, смесь для кладки на выходе не должна содержать комочков и примесей.

Компоненты для раствора берут в пропорциях: 1 часть известки, 2-5 части песка.

Цементные растворы

В цементном растворе, главными составляющими являются цемент и песок. От марки цемента зависят пропорции ингредиентов. Например: 1 часть цемента и 3-6 частей песка.

Сухие ингредиенты с водой перемешиваем до образования единой массы. Вначале замешиваем сухие ингредиенты, а только потом добавляют воду. Но такой способ не очень хороший, так как даже при использовании разных марок бетона раствор выходит малоподвижным и жёстким.

Цементно-известковый раствор

Раствор состоит их извести и цемента. Принцип приготовления раствора:

1. Известковая масса (гашеная известь), разводят ее водой до густого состояния, затем процеживается;
2. Сухой цемент и песок соединяют;
3. Сухие составляющие разводят известковым раствором и смешивают.

Известь вводят для пластичности, и использовался для кладки из любого вида кирпича.

Простой раствор

Обычный раствор изготавливают из связывающего вещества и песка. Иногда как вяжущее вещество берут глину, но этот раствор используют для узко специализированных работ.

Цементно — песчаную смесь  готовят 1:3 .  Все сухие составляющие перемешиваем, потом постепенно наливаем воду. После добавления воды смесь размешивают.

Сложный раствор

По консистенции раствор не должен быть жидким, как вода.

Сложным замесом раствора считается, тот замес, в котором участвует несколько составляющих и вяжущий материал. Например: цементно-известково-глиняный или цементно-известковый.

При добавлении глины раствор не разваливается, укладывается аккуратно и легко.

Для кладки кирпича фасадных стен в раствор добавляют пластификаторы. Такой раствор очень экономичен, на поверхность наносится ровным слоем.

Специалисты рекомендуют приготовление такого раствора, но он займёт немного больше времени при приготовлении.

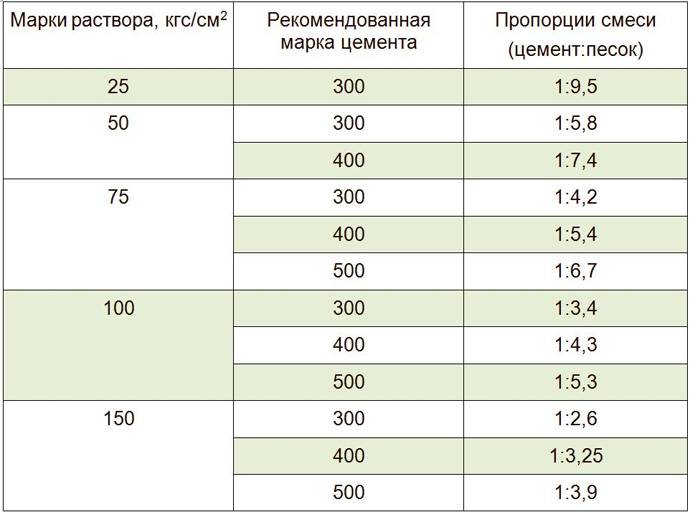

Соотношение ингредиентов

Для приготовления правильного раствора нужно рассчитать количество ингредиентов. Для раствора песок берут средней фракции, марка раствора возможна разная, но именно фракция песка влияет на пропорции. Например:

1. Используем  цемент М-500, пропорции будут такими: 1 часть цемента на 2/10 извести берут 3 части песка;
2. Используем марку цемента 400, пропорции будут такими: 1 часть цемента на 1-3/10 частей извести на 2,5- 4 части песка;
3. Используем марку цемента 300, берётся 1 часть цемента на 2/10 извести на 3,5 песка.

Все составляющие раствора нужно хорошо перемешать.

Этот пример для цементно-известняковой смеси и для цементно-песчаной смеси.

Пропорции раствора:

1. При использовании марки цемента 500, берут 1 часть цемента на 3 части песка;
2. на марку цемента 400, берут 1 часть цемента на 2,5 части песка.

Полезная информация

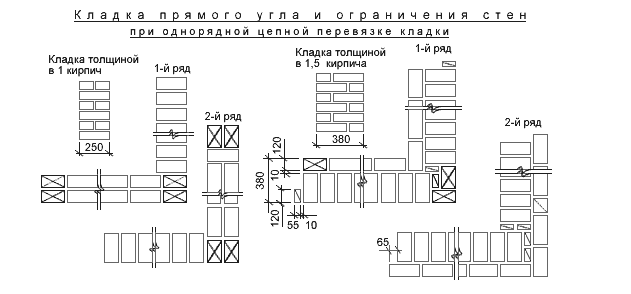

Способы кладки

Укладывают кирпич по особым правилам, чтобы строительная конструкция была монолитной, прочной.

Чтобы сделать раствор, используют холодную воду без всяких загрязнений, температура ее должна составлять 15-20 градусов.

Все дозировки при изготовлении кладочной смеси нужно соблюдать точно.

Расход воды:

1. Марка бетона 100, берут 1 часть цемента от 1/2 до 7/10 частей воды;
2. Цементно – песчаный раствор. На части цемента используют 8/10 частей воды.

Расход цемента:

1. Марка М100 – 300-250 кг на м3;
2. М150 — 400-330 кг на м3;
3. М200 — 490-410 кг на м3;
4. М300 — 600-510 кг на м3.

Подвижность раствора

Подвижность раствора является важной характеристикой. Данная величина зависит от того, какие ингредиенты замешивают в раствор.

Для проверки подвижности раствора применяют конус, угол которого составляет 30 градусов, высота 15 см и масса 300 грамм. Конус погружаем, в приготовленный раствор. То, на какое количество сантиметров погрузился конус, и есть цифра, показывающая подвижность состава.

Измеряем подвижность раствора

Для чего необходимо измерять подвижность раствора?

Для качественной кирпичной кладки необходимо выбирать качественный кирпич и выбирать качественные компоненты для раствора. От качества всех материалов зависит качество, прочность и надёжность будущего строения.

В наше время используют разные кладочные растворы, но их выбор зависит от метеорологических условий, при которых будет производиться кладка кирпича и в каких целях будет использоваться строительный материал.

Это нужно для прочности кирпичной кладки.

• Для полнотелого кирпича берут раствор с подвижностью 9-13 см,
• для пустотелого кирпича берут смесь с подвижностью 7-8 см,
• в жаркую погоду берут раствор с подвижностью до 12-14 см.

Перед началом работ с кирпичом и кладочными растворами тщательно изучите все нюансы, правильно подберите раствор, правильно приготовьте. А лучше всего доверьте работу специалистам в этой области, они всё должны сделать по правилам. Желаем вам удачи в начинаниях!
